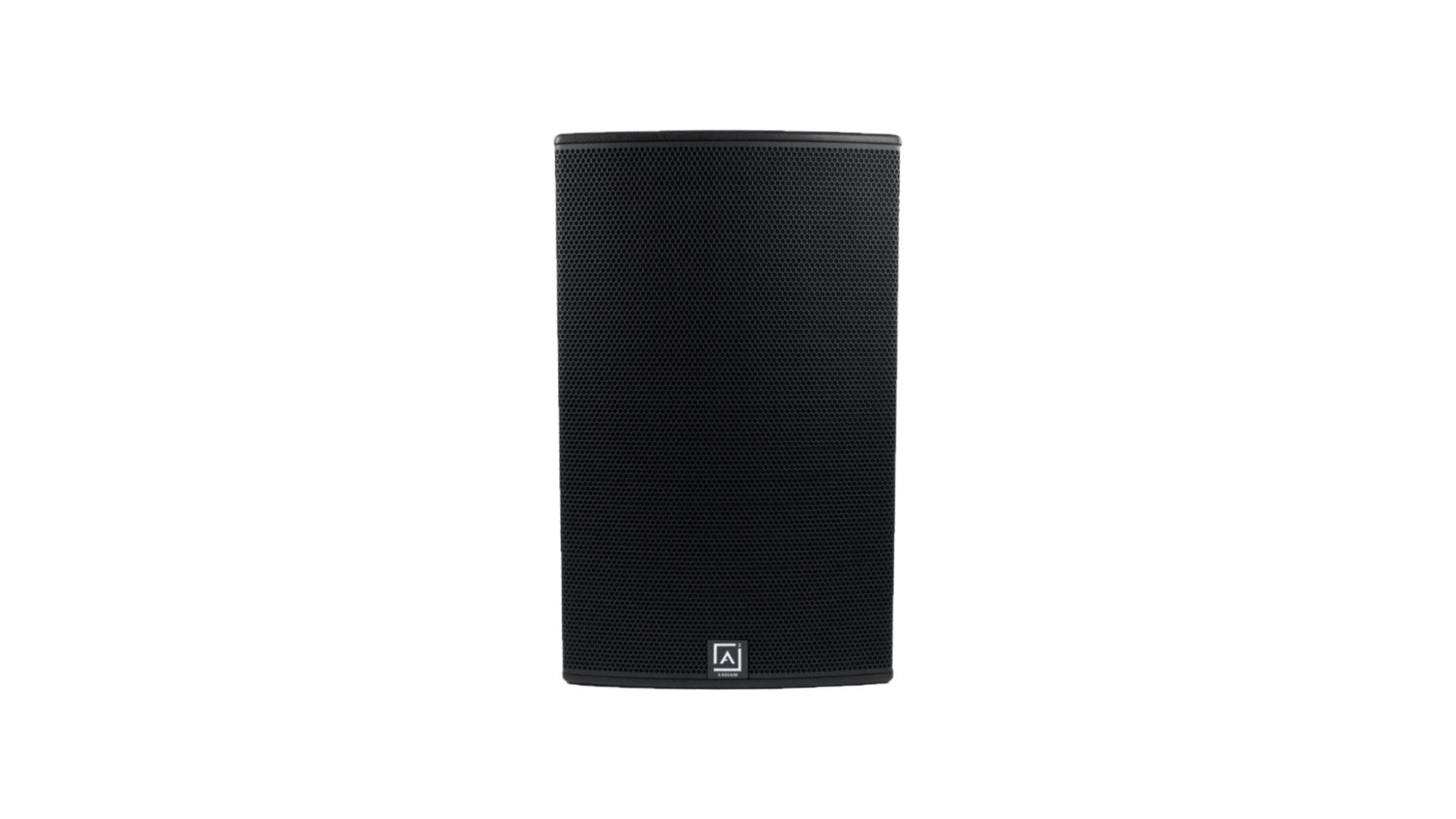

A Square’s powerhouse speaker, built with 15mm birch plywood, delivers deep bass and crisp highs through a 3” compression driver and 12” low-frequency driver. Offering 300W RMS and 125dB peak SPL, its customizable dispersion ensures precise coverage. With NL4 connectors and durable design, it's perfect for dynamic, high-impact audio.

> SPECIFICATIONS

HF: 1 x 3" High-Frequency Compression Driver
LF: 1 x 12" Low-Frequency Driver
Frequency Response (-10dB) : 45Hz – 18kHz
Power Rating :300W (RMS) 600W (PGM) 1200 (PEAK)
SPL (1W / 1M ): 94dB
Maximum Sound Pressure Level: 119dB / 125dB (Peak)
Impedance: 8Ω
Coverage Pattern (H × V): Customisable Dispersion
Connectors: NL4 × 2
Product Dimensions (W × H × D): 405mm × 442mm × 650mm
Box Dimensions (W × H × D): 553mm × 512mm × 770mm
Net Weight: 27.0kg
Gross Weight: 30.0kg

AZ 12

AZ 12

A Square’s robust speaker offers deep bass, clear highs, and customizable dispersion, delivering powerful, highfidelity sound for professional audio applications.

A Square’s robust speaker offers deep bass, clear highs, and customizable dispersion, delivering powerful, highfidelity sound for professional audio applications.
